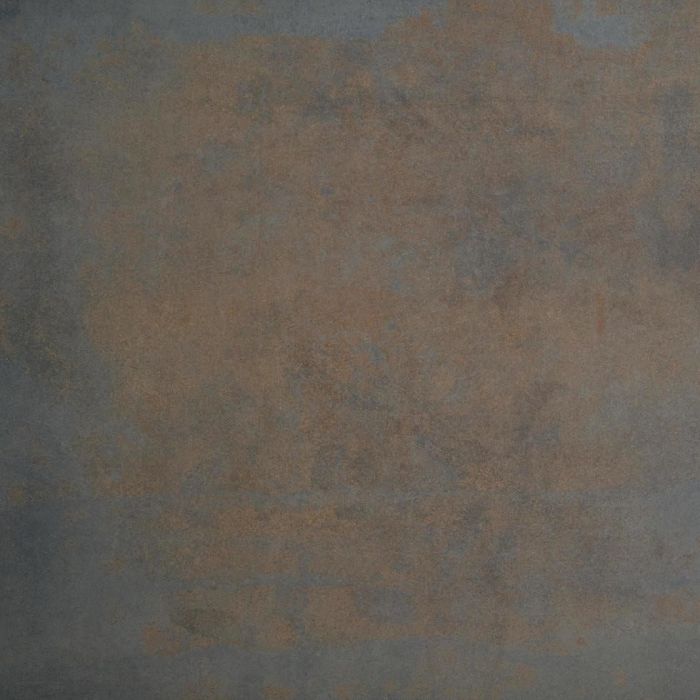

10mm Mild Steel Plate

We can save you time and effort by drilling your fixing holes for you.

Select corners, edges or a centre hole.

You can then choose the size of the hole and the distance from the edge for each individual hole. Need them all the same size and distance? No problem, click select all. Don't want one of the holes? Just click on the bin to delete it.

Click +Add Additional Holes to choose edges and corners or to add a centre hole as well.

You can check the hole placement in the visualiser.

Please make sure your selection aligns with the orientation of the product.

If you require more holes or bespoke hole placement, please use our Cutouts option below.

1. Select ‘Yes’ to add a rectangle or circle cutout.
2. Add the length, width or diameter of the cutout.
3. To position the cutout use the ‘Alignment’ section. Click ‘Centre’ to put the cutout in the centre. For any other position click ‘Custom’ and add your offset left and offset bottom measurements in mm.

How do I measure where the cutout should be?

For ‘Offset Left’ measure from the left edge to the cutout edge.

For ‘Offset Bottom’ measure from the bottom edge to the cutout edge as in the diagram.

You will need:

• 2 straight edges
• A curved corner

Step 1. Place a straight edge along each surface edge of the curved corner as in the diagram below and mark the points where the curve starts (A)

Step 2. From (A) create straight lines so that they both meet to make a quarter of a circle.

Step 3. Measure the length of each line, they should be the same. This is your radius.

If you have access to a printer you can also use this handy template to measure the radius of a corner. Make sure you change your print settings to print to actual size. Once printed you can check its actual size with the reference scale and a ruler.
